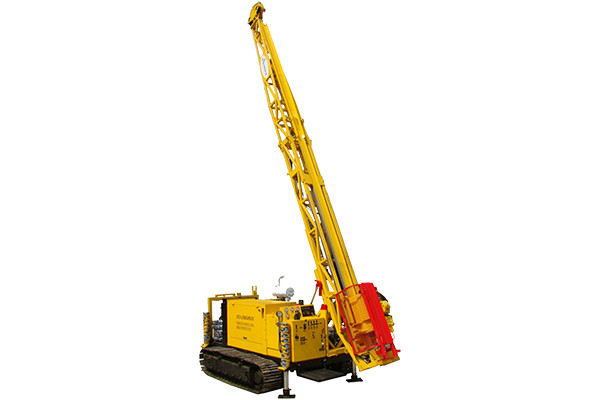

CSD1300L drilling rig is specially designed for diamond drilling on ground surface.
Features
1. Crawler track mounted.
2. 4-speed gearbox.
3. Large chuck with diameter up to 117mm.
4. Stroke of power head is 3.5m, suitable for 3-meter-long rods.
5. Mast of this surface core drilling rig can slide.
6. Foldable mast minimizes transport dimensions.
7. Independent hydraulic leveling jacks.
8. Accurate control of feed pressure.
9. Floating device of power head can protect the rod threads during make up and break out.
10. Real time display of drilling data on the control panel.
11. Flow of mud pump can be hydraulically controlled on control panel.
12. Premium hydraulic components from Europe / US.
13. Powerful US main hoist.
14. Wireline hoist of this diamond core drilling rig is designed with automatic rope spooler.
After-sales Service
Our professional engineer team is globally available, 24/7.
Note
Our drilling rigs are available with different mounting options and diesel or electric drive options. Please contact landy.industry20@gmail.com for more information.
Technical Parameter
| Drilling Capacity | |
| Diameter of Drill Rod | BS, NS, HS, PS |
| Drilling Depth | 1,300m 1,000m 700m 400m |
| Engine | |
| Model | Cummins 6BTA-5.9 |
| Type | Turbocharged |
| Power | 132kW |
| Rotational Speed | 2,500rpm |
| Drill Bit | |
| Max. Torque | 4,257Nm |
| Max. Rotation | 1,182rpm |
| Feed Stroke | 3,500mm |
| Max. Inside Diameter | 117mm |
| Pull/Push | 120KN/50KN |
| Main Hoist | |
| Max. Pull | 68KN |
| Pulling Speed | 28m/min |
| Rope Diameter | 16mm |
| Rope Length | 30m |
| Wireline Hoist | |
| Max. Pull | 11KN (bare drum) |
| Pulling Speed | 120m/min |
| Rope Diameter | 6.6mm |
| Rope Length | 1,500m |
| Mast | |
| Length | 10m |
| Drilling Angle | 45 to 90 degrees |
| Dump Length | 1.1m |
| Foot Clamp | |
| Drill Rod | BS, NS, HS, PS |
| Travelling Capacity | |
| Max. Permissible Gradient | 30° |
| Max. Travelling Speed | 2km/h |
| Transporting Dimensions | 5,100 × 2,350 × 2,600mm (L × W × H) |
| Weight | |
| Gross Weight | 8.5t |
