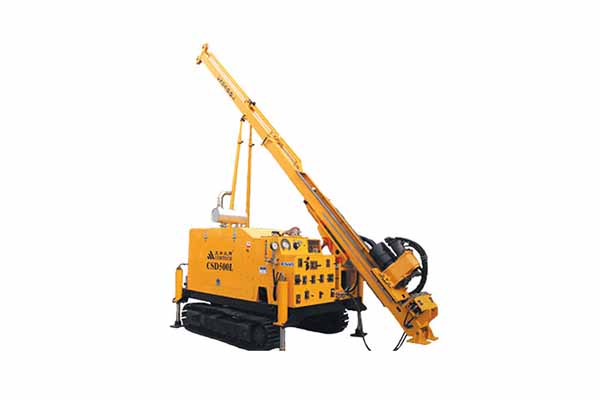

CSD500L Exploration Drilling Rig

Features
1. Crawler track mounted.
2. Applicable for drilling in narrow space.
3. Mast dump.
4. Equipped with main winch, wireline winch, mud pump and mud mixer.
5. The floating device of drill head can protect the rod threads during make up and break out.
6. Equipped with foot clamp which can be hydraulically open and closed.
7. Accurate control of feed pressure.
8. Premium hydraulics from Europe / US.



After-sales Service
Our professional engineer team is globally available, 24/7.

Note
Our drilling rigs are available with different mounting options and diesel or electric drive options. Please contact landy.industry20@gmail.com for more information.

Parameter

Drilling Capacity (for reference)
Diameter of Drill Rod	BS, NS, HS
Drilling Depth	650m 500m 300m
Hydraulic System
Rated Pressure	24MPa
Cooling	Air Cooled
Engine
Model	Cummins 4BTA3.9-C110
Rated Power	82kW
Rotational Speed	2,200rpm
Drill Head
Max. Torque	1,400Nm
Max. Rotation	1,000rpm
Feed Stroke	1,800mm
Max. Inside Diameter	97mm
Pull/Push	70KN/35KN
Main Winch
Max. Pull	40KN
Pulling Speed	35m/min
Rope Diameter	14mm
Rope Length	30m
Wireline Winch
Max. Pull	10KN (bare drum)
Pulling Speed	110m/min (bare drum)
Rope Diameter	5mm
Rope Length	600m
Mast
Length	8.6m
Drilling Angle	45 to 90 degrees
Dump Length	900mm
Foot Clamp
Drill Rod	BS, NS, HS, PS
Travelling Capacity
Max. Permissible Gradient	20°
Max. Travelling Speed	1.7km/h
Transport Dimensions	4,570 × 2,000 × 2,425mm (L × W × H)
Weight
Gross Weight	5.7t
