CSD500CE Diamond Drilling rig

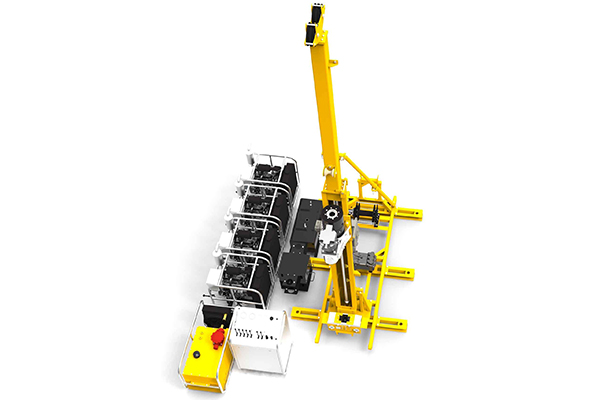

CSD500CE is designed for the exploration work in the areas where vehicles are difficult to get access. It is composed of a hydraulic station powered by four diesel engines, a chuck type rotary head and a foot clamp, a mast and base frame, a main winch and a wire line winch. The rig is good for diamond coring with normal 3m length rod.

Features
1. Modularized design with maximum unit weight not exceeding 230kg;
2. 3+1 Japan original Kubota engines (3 for drilling rig, 1 for mud pump);
3. All-hydraulic-driven drill head;
4. Drill Head with its maximum rotational speed reaching 1,130 RPM;
5. Suitable for BS, NS and HS rod, and rod holder is designed;
6. 1.8 m feed stroke;
7. 3-meter pulling capability;
8. Rod safety protection device is designed with this onshore land drilling rig;
9. Maximum drilling depth of 400m in NS size;

After-sales Service
Our expert service engineer team is globally available, 24/7.

Note
Our onshore drilling machines are available with different mounting options and diesel or electric drive options. Please contact landy.industry20@gmail.com for more information.
Technical Specifications
Depth Capacity
(for reference)
Diameter of Drill Rod Drilling Depth
BS 600m
NS 400m
HS 200m
Hydraulic System Pressure 18MPa
Cooling Air Cooled
Engine Model Kubota
Rated Power 24.5KW X ( 3+1 )
Rotational Speed 2,800rpm
Drill Head Max. Torque 800Nm
Max. Rotation, RPM 1,130rpm
Feed Stroke 1,800mm
Max. Inside Diameter 97mm
Max. Pull/Push 70KN/35KN
Main Winch Max. Pull 30KN
Pulling Speed 26m/min
Rope Diameter 14mm
Rope Length 30m
Wire Line Winch Max. Pull 11KN(bare drum)
Pulling Speed 110m/min(bare drum)
Rope Diameter 5mm
Rope Length 500m
Mast Length 6.2m
Drilling Angle 45°~90°
Foot Clamp Drill Rod BS, NS, HS, PS

Mud Pump


Max Unit Weight After Dismounting 200kg (Main Winch is 230 kg)

Mineral Exploration

Surface Diamond Drilling

Rig Model CSD500 CSD1300 CSD1800 CSD3000 CMR1000

Drilling Diamond Diamond Diamond Diamond Diamond
RC
Power of Hydraulic Station Diesel Engine Diesel Engine
Electric Motor
Diesel Engine
Electric Motor
Diesel Engine
Electric Motor
Diesel Engine
Mounting Modularized Man Portable
Track Mounted
Track Mounted
Skid Mounting
Track Mounted
Skid Mounting
Track Mounted
Skid Mounting
Track Mounted
Skid Mounting
NOTE: tailor made as per buyer's request is available.

Underground Diamond Drilling

CKD300 CKD600G

Type of Drilling Diamond
360 Degree Drilling Angle
Diamond
360 Degree Drilling Angle
Power of Hydraulic Station Electric Motor Electric Motor
Mounting Modularized Skid Mounting Modularized Skid Mounting

Energy and Water Well

Rig Model CMD40 CMD60 CMD100 CMD150S CMD180SD

Top Drive Hydraulic Hydraulic Hydraulic Hydraulic
AC - VFD
Hydraulic
AC - VFD
Power of Hydraulic Station Diesel Engine Diesel Engine Diesel Engine Diesel Engine
Electricity
Electricity
Hoist/Push Force Track/Trailer Track/Trailer Track/Trailer Modularized Skid Modularized Skid
