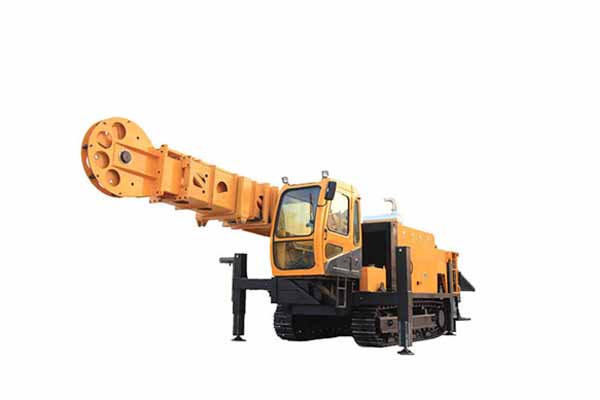

CSD3000 Exploration Diamond Drilling Rig

Features
1. Crawler mounted design.
2. 4-speed gear box.
3. Large chuck with diameter up to 117mm.
4. Independent hydraulic leveling jacks.
5. Drill head side slide to stay away from the center.
6. Telescopic mast.
7. Mast dump.
8. The drilling tower can support 200 x 9-meter-long NS rods.
9. Independent hydraulic cooling system.
10. Premium hydraulics from Europe / US.

After-sales Service
Our professional engineer team is globally available, 24/7.

Note
Our drilling rigs are available with different mounting options and diesel or electric drive options. Please contact landy.industry20@gmail.com for more information.

Technical parameter

Drilling Capacity (for reference)
Diameter of Drill Rod	BS, NS, HS, PS
Drilling Depth	3,000m 2,300m 1,600m 1,050m
Hydraulic System
Rated Pressure	28MPa
Cooling	Air Cooled
Engine
Model	Cummins 6LTAA8.9-C325
Type	Turbo Charged
Power	239kW
Rotational Speed	2,200rpm
Drill Head
Max. Torque	8,170Nm
Max. Rotation	1,250rpm
Feed Stroke	3,450mm
Max. Inside Diameter	117mm
Pull/Push	250KN/90KN
Main Winch
Max. Pull	185KN
Pulling Speed	25m/min(low),60m/min(high)
Rope Diameter	24mm
Rope Length	40m
Wireline Winch
Max. Pull	18KN(bare drum)
Pulling Speed	120m/min(bare drum)
Rope Diameter	6.6mm
Rope Length	2,500m
Mast
Length	11.2-13.7m
Drilling Angle	45 to 90 degrees
Dump Length	1.4m
Foot Clamp
Drill Rod	BS, NS, HS, PS
Travelling Capacity
Max. Permissible Gradient	30°
Max. Travelling Speed	2km/h
Transport Dimensions	11,240 × 2,310 × 3,330mm (L × W × H)
Weight
Gross Weight	23.5t
