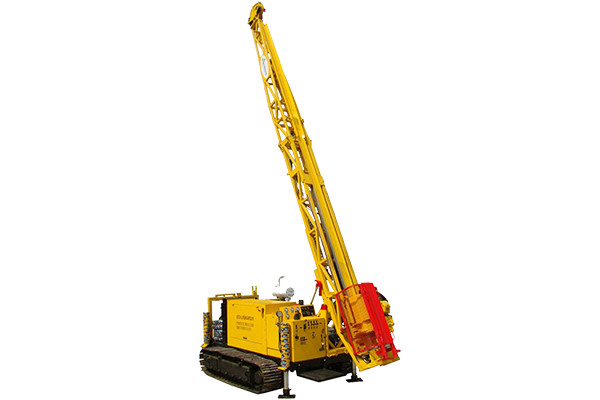

CSD1800X Surface Diamond Core Drilling Rig

Features
1. 4-speed gearbox.
2. Large chuck with max diameter up to 117mm.
3. Stroke of drill head is 3.5m, suitable for 3-meter-long rods.
4. Drill head side slide to stay away from the center.
5. Mast dump.
6. Foldable mast minimizes transport dimensions.
7. Independent hydraulic leveling jacks.
8. Accurate control of feed pressure.
9. Drill head floating protects the rod threads.
10. Real time display of drilling data on the control panel.
11. Mud flow controlled at control panel.
12. Premium hydraulics from Europe / US.
13. Different mounting options and diesel/electric drive options available.


After-sales Service
Our professional engineer team is globally available, 24/7.

Note
Our drilling rigs are available with different mounting options and diesel or electric drive options. Please contact landy.industry20@gmail.com for more information.

Technical Parameter

Drilling Capacity
Diameter of Drill Rod	BS, NS, HS, PS
Drilling Depth	2,000m 1,700m 1,200m 700m
Hydraulic System
Rated Pressure	28Mpa
Colling	Air Cooled
Engine
Model	Cummins 6CTA8.3-C240
Type	Turbo Charged
Rated Power	179kW
Rotational Speed	2,200rpm
Drill Head
Max. Torque	5,500Nm
Max. Rotation	1,050rpm
Feed Stroke	3,500mm
Max. Inside Diameter	117mm
Pull/Push	189KN/50KN
Main Winch
Max. Pull	135KN
Pulling Speed	33m/min (low), 49m/min (high)
Rope Diameter	22mm
Rope Length	35m
Wireline Winch
Max. Pull	11KN (bare drum)
Pulling Speed	120m/min
Rope Diameter	6.6mm
Rope Length	1,500m
Mast
Length	10m
Drilling Angle	45 to 90 degrees
Dump Length	1.1m
Foot Clamp
Drill Rod	BS, NS, HS, PS
Travelling Capacity
Max. Permissible Gradient	30°
Max. Travelling Speed	2km/h
Transport Dimensions	5,250 × 2,320 × 2,600mm (L × W × H)
Weight
Gross Weight	11.3t
