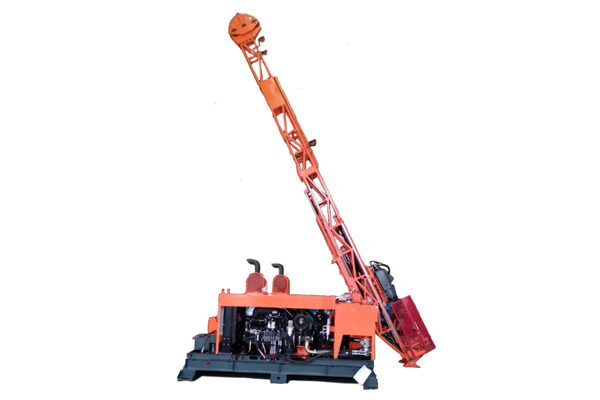

CSD1800H Helicopter hoisting Hydraulic Surface Diamond Drilling Rig

Features

1. Modular design with maximum unit weight not exceeding 700kg.
2. A spare chassis is supplied, and it can be installed at the next drilling hole before the helicopter transports the disassembled parts to this hole. This can minimize the down time of our core drilling machine by saving time of transportation.
3. 4 speed transmission.
4. Large chuck with diameter up to 117mm.
5. 2m feed stroke of drill head, suitable for 1.5m rods.
6. Independent hydraulic leveling jacks.
7. More precise pressure control of drill head.
8. Universal parts and components.
9. Real time display of drilling data on the control panel.
10. Premium hydraulics from Europe / US.


After-sales Service
Our professional engineer team is globally available, 24/7.

Note
Our helicopter-portable drilling rigs are available with different mounting options and diesel or electric drive options. Please contact landy.industry20@gmail.com for more information.

Technical Specifications

Drilling Capacity
Diameter of Drill Rod	BS, NS, HS, PS
Drilling Depth	2,000m 1,700m 1,200m 700m
Hydraulic System
Rated Pressure	28MPa
Cooling	Air Cooled
Engine
Model	Cummins 6BTA-5.9
Type	Turbo Charged
Rated Power	132kW
Rotational Speed	2,200rpm
Drill Head
Max. Torque	5,500Nm
Max. Rotation	1,200rpm
Feed Stroke	2,000mm
Max. Inside Diameter	117mm
Pull/Push	189KN/50KN
Main Winch
Max. Pull	135KN
Pulling Speed	35m/min (bare drum / low speed) 65m/min (bare drum / high speed)
Rope Diameter	22mm
Rope Length	35m
Wireline Winch
Max Pull	11KN (bare drum)
Pulling Speed	120m/min (bare drum)
Rope Diameter	6.6mm
Rope Length	1,500m
Mast
Length	10m
Drilling Angle	45 to 90 degrees
Foot Clamp
Drill Rod	BS, NS, HS, PS
Transport Dimensions
L × W × H	5,100 × 3,500 × 2,100 mm
Weight
Max. Unit Weight after Dismounting	820kg
Gross Weight	9,435kg
