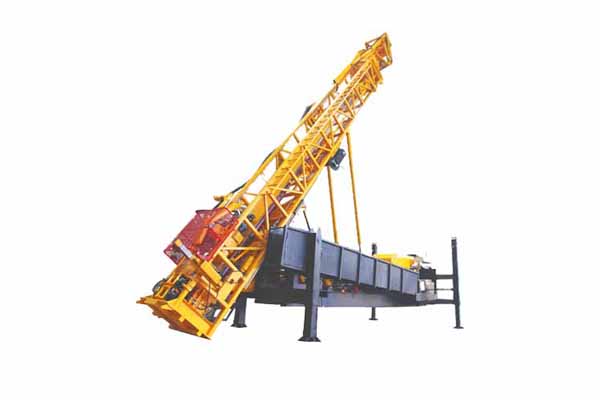

CMR1000A Multipurpose Diamond & RC Drilling Rig

Features
1. This multipurpose exploration drill can be configured to suit different transport applications, such as truck or crawler mounted and jack-up style;
2. Low cost;
3. Low contamination;
4. This multipurpose drill rig is suitable for the most varied drilling conditions.


After-sales Service
Our professional engineer team is globally available, 24/7.

Note
Our rigs are available with different mounting options and diesel or electric drive options. Please contact exp@cortech.cn for more information.

Technical Specifications

Drilling Capacity （for reference）	Core Drilling	Diameter of Drill Rod	Drilling Depth
		BS	3,000m
		NS	2,400m
		HS	1,600m
		PS	1,100m
	Reverse Circulation Drilling	4”	400m
		4.5”	320m
Hydraulic System	Rated Pressure	29MPa
	Cooling	Air Cooled
Engine	Model	6LTAA8.9-C325
	Type	Turbo Charged
	Rated Power	239kW
	Rotational Speed	2,200rpm
Drill Head	Max. Torque	11,400Nm
	Max. Rotation	1,180rpm
	Feed Stroke	7,320mm
	Head Type	Top Drive
	Max. Pull	250kN
	Max. Push	110kN
Main Winch	Max. Pull/Pulling Speed	191kN@30m/min
		90kN@54m/min
	Rope Diameter	26mm
	Rope Length	25m
Wireline Winch	Max. Pull/Pulling Speed	19kN@107m/min（bare drum）
		5kN@410m/min（full drum）
	Rope Diameter	6.6mm
	Rope Length	2,500m
Mast	Length	13.4m
	Drilling Angle	45°-90°
	Dump Length	1,400mm
Foot Clamp	Drill Rod	BS, NS, HS, PS, PW
Clamp Shackle Equipment	Drill Rod	3.5”, 4”, 4.5”
Transporting Dimensions	L×W×H	13,400×2,500×3,230mm
Total Weight	24.5t
