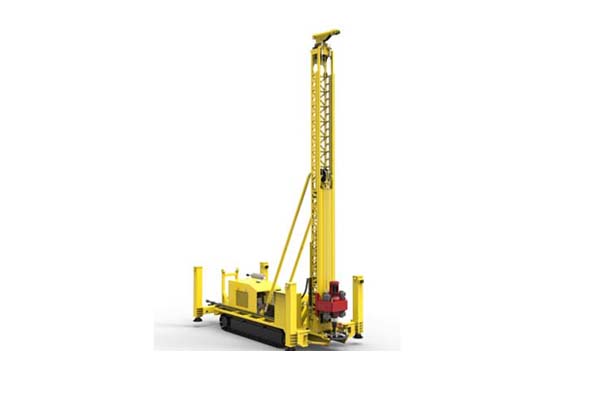

CMD40 Energy and Water Well Drilling Rig

Advantages
1. Truck mounted rig, compact and rugged design with high mobility.
2. Hydraulic top drive of this well drilling equipment provides high torque and infinitely variable speed control.
3. Hydraulic feed system of our water well drilling machines offers precise control of weight on bit (WOB) and rate of penetration (ROP).
4. Pull-down drilling function negates the use of weighted drill string in top hole and directional drilling operations.
5. No cranes are needed in the setup of the rig due to the hydraulic self-erecting mast.

Features
1. Truck mounted;
2. Telescopic mast;
3. Two-speed top drive with hydraulic rough neck.
4. Premium hydraulic components from Europe / US.

After-sales Service
Our professional engineer team is globally available, 24/7.

Parameter

Feed System
Pull Force	60t
Pull Down Force	14.5t
Slipbox
Max. Opening Diameter	φ711mm
Top Drive
Torque / Rotation	17,000Nm 0-70rpm 8,500Nm 0-140rpm
Through-Hole Diameter	76mm
Mast
Mast Length	17.3m (after extended) 11.5m (before extended)
Top Drive Stroke	11.6m
Rod & Casing	II (9.15cm)
Dimensions
Total Weight	55t
Dimensions (L × W × H)	11m × 2.5m × 4.3m
Power System
Main Engine	Cummins QSZ13-C500-Ⅲ
Power	500HP
Displacement	13L
Truck Chassis
Model	(HOWO) 8 × 4
Engine	276kW
Air / Mud Line
Pressure	21MPa
Tube Core	2"
Mud Pump	Optional
Air Compressor	Optional
