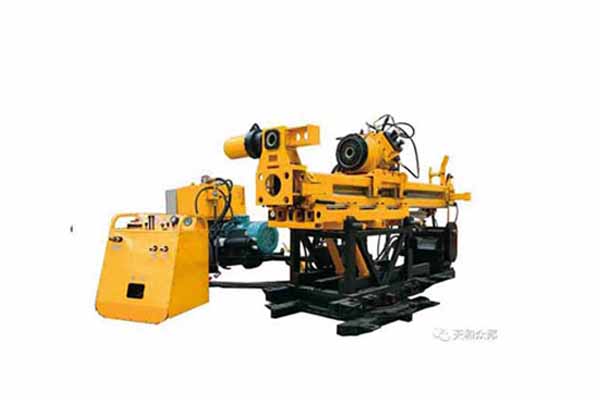

CKD600G Underground Drilling Rig

Features
1. 360° drilling.
2. This fully hydraulic drilling rig is applicable for drilling at narrow job site.
3. A customized mud pump can be supplied as per customer requirements.
4. Premium hydraulic components from Europe / US.

After-sales Service
Our professional engineer team is globally available, 24/7.

Note
Our rigs are available with different mounting options and diesel or electric drive options. Please contact landy.industry20@gmail.com for more information.

Technical Specification

Drilling Capacity (for reference)
Diameter of Drill Rods	AS, BS, NS, HS
Drilling Depth	(Downward) 1,000m 750m 600m 350m
	(Level) 650m 470m 370m 210m
	(Upward) 750m 650m 370m 210m
Hydraulic System
Rated Pressure	26MPa
Cooling	Water Cooled
Engine
Rated Power	75KW
Rotational Speed	1,485rpm
Drill Head
Max. Torque	1,030nm
Max. Rotational	1,140rpm
Feed Stroke	1,800mm
Max. Inside Diameter	97mm
Max. Pull / Push	65KN / 65KN
Main Winch
Max. Pull	10KN (bare drum)
Pulling Speed	100m/min (bare drum)
Rope Diameter	6mm
Rope Length	800m
Mast
Length	3.3 to 5.8m
Drilling Angle	-90° to +90°
Dump Length	1.1m
Foot Clamp
Drill Rod	BS, NS HS
Transport Dimensions
Main Frame Unit	3,700 × 1,790 × 2,160mm
Power Unit	2,980 × 1,210 × 1,560mm
Operation Unit	785 × 680 × 950mm
Gross Weight
Control Panel	0.31t
Power Unit	1.56t
Drill Unit	2.52t
