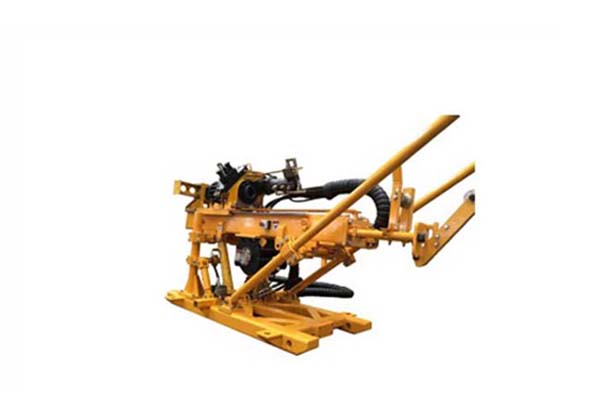

CKD300 Underground Hydraulic Drilling Rig

Features
1. 360° drilling.
2. This underground drill rig is applicable for drilling at narrow job site.
3. A customized mud pump can be supplied as per customer requirements.
4. Premium hydraulic components from Europe / US.

After-sales Service
Our professional engineer team is globally available, 24/7.

Note
Our rigs are available with different mounting options and diesel or electric drive options. Please contact landy.industry20@gmail.com for more information.

Technical Specifications

Drilling Capacity (for reference)
Diameter of Drill Rod	AS, BS, NS.
Drilling Depth	475m, 400m, 300m
Hydraulic System
Rated Pressure	26MPa
Cooling	Water Cooled
Engine
Model	Simons 1tl0001- 2bb
Power	45kW
Drill Head
Max. Torque	567nm
Max. Rotational Speed	1,400rpm
Feed Stoke	850mm
Max. Inside Diameter	79mm
Max. Pull/Push	40KN / 40KN
Main Winch
Max. Pull	11kn (bare drum)
Pulling Speed	110m/min (bare drum)
Rope Diameter	5mm
Rope Length	425m
Mast
Length	2.1m
Drilling Angle	-90° to +90°
Foot Clamp
Drill Rod	AS, BS, NS,
Transport Dimension
Rig Unit	3,070 × 1,175 × 1,445mm
Power Unit	1,630 × 800 × 1,300mm
Control Panel Unit	890 × 625 × 1,150mm
Weight
Gross Weight	2.9t
