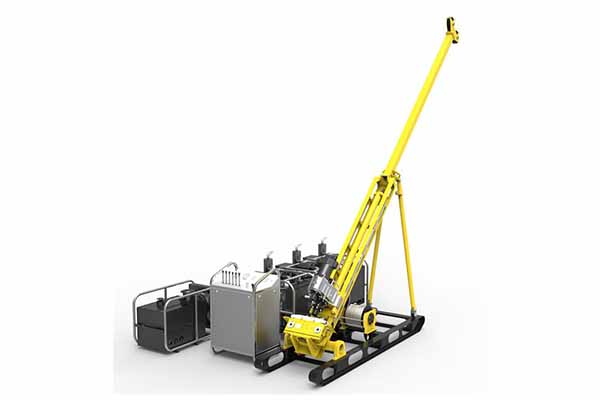

CSD500C man-portable drilling rig is specially designed for diamond drilling at hard-to-access locations.
Features
1. Modular design with maximum unit weight not exceeding 280kg.
2. Dual Yanmar 4TNV84T diesel engines. The rated output of each engine is 35.5 kW (2,800RPM).
3. All-hydraulic-driven drill bit of this diamond drilling equipment.
4. Power head with its maximum rotational speed reaching 1,100 RPM.
5. Suitable for BS, NS and HS rod, and rod holder is designed.
6. 1.8m feed stroke.
7. 3-meter pulling capability.
8. Rotary safety protection device is designed with this diamond core drill rig.
9. Maximum drilling depth of 400m in NS size.
After-sales Service
Our professional engineer team is globally available, 24/7.
Note
Our drilling rigs are available with different mounting options and diesel or electric drive options. Please contact landy.industry20@gmail.com for more information.
Technical Specifications
| Drill Capacity | |
| Diameter of Drill Rod | BS, NS, HS |
| Drilling Depth | 600m 400m 200m |
| Engine | |
| Model | Yanmar 4TNV84T |
| Power | 35.5kW × 2 |
| Rotational Speed | 2,800rpm |
| Drill Bit | |
| Max. Torque | 1,120Nm |
| Max. Rotational Speed | 1,100rpm |
| Feed Stroke | 1,800mm |
| Max. Hollow | 97mm |
| Pull/Push | 70KN / 35KN |
| Main Hoist | |
| Max. Pull | 30KN |
| Pulling Speed | 35m/min |
| Rope Diameter | 14mm |
| Rope Length | 30m |
| Wireline Hoist | |
| Max. Pull | 11KN(bare drum) |
| Pulling Speed | 110m/min(bare drum) |
| Rope Diameter | 5mm |
| Rope Length | 500m |
| Mast | |
| Length | 6.2m |
| Drilling Angle | 45 to 90 degrees |
| Foot Clamp | |
| Drill Rod | BS, NS, HS, φ108 |
| Transport Dimensions | |
| Main Frame Unit | 3,450 × 1,800 × 1,500 mm |
| Power Unit | 1,280 × 680 × 980 mm |
| Operation Unit | 1,030 × 655 × 1, 135 mm |
| Max. Unit Weight after Dismounting | |
| Max. Unit Weight after Dismounting | 280kg |
