Features

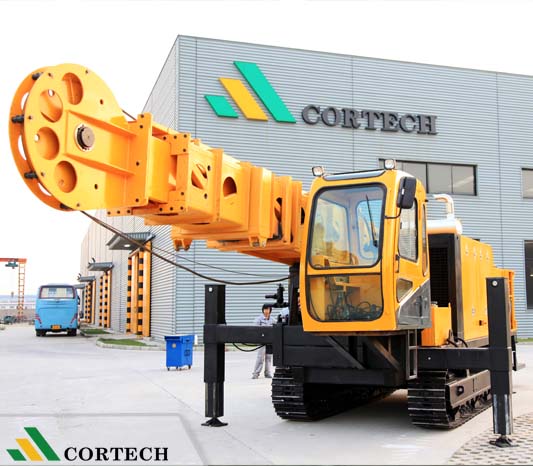

1. Crawler mounted design.
2. 4-speed gear box.
3. Large chuck with diameter up to 117mm.
4. Independent hydraulic leveling jacks.
5. Drill head side slide to stay away from the center.
6. Telescopic mast.
7. Mast dump.
8. The drilling tower can support 200 x 9-meter-long NS rods.
9. Independent hydraulic cooling system.
10. Premium hydraulics from Europe / US.
After-sales Service
Our professional engineer team is globally available, 24/7.
Note
Our drilling rigs are available with different mounting options and diesel or electric drive options. Please contact landy.industry20@gmail.com for more information.
Technical Specifications
| Drilling Capacity (for referece) | |
| Diameter of Drill Rod | BS, NS, HS, PS |
| Drilling Depth | 3,000m 2,300m 1,600m 1,050m |
| Hydraulic System | |
| Rated Pressure | 28MPa |
| Cooling | Air Cooled |
| Engine | |
| Model | Cummins 6LTAA8.9-C325 |
| Type | Turbo Charged |
| Rated Power | 239kW |
| Rotational Speed | 2,200rpm |
| Drill Head | |
| Max. Torque | 8,170Nm |
| Max. Rotation | 1,150rpm |
| Feed Stroke | 3,450mm |
| Max. Inside Diameter | 117mm |
| Pull/Push | 250KN/90KN |
| Main Winch | |
| Max. Pull | 185KN |
| Pulling Speed | 25m/min(low),60m/min(high) |
| Rope Diameter | 24mm |
| Rope Length | 40m |
| Wireline Winch | |
| Max. Pull | 18KN(bare drum) |
| Pulling Speed | 120m/min(bare drum) |
| Rope Diameter | 6.6mm |
| Rope Length | 2,500m |
| Mast | |
| Length | 11.2-13.7m |
| Drilling Angle | 45 to 90 degrees |
| Dump Length | 1.4m |
| Foot Clamp | |
| Drill Rod | BS, NS, HS, PS |
| Travelling Capacity | |
| Max. Permissible Gradient | 30° |
| Max. Travelling Speed | 2km/h |
| Transport Dimensions | 11,240 × 2,310 × 3,330mm (L × W × H) |
| Weight | |
| Gross Weight | 23.5t |
